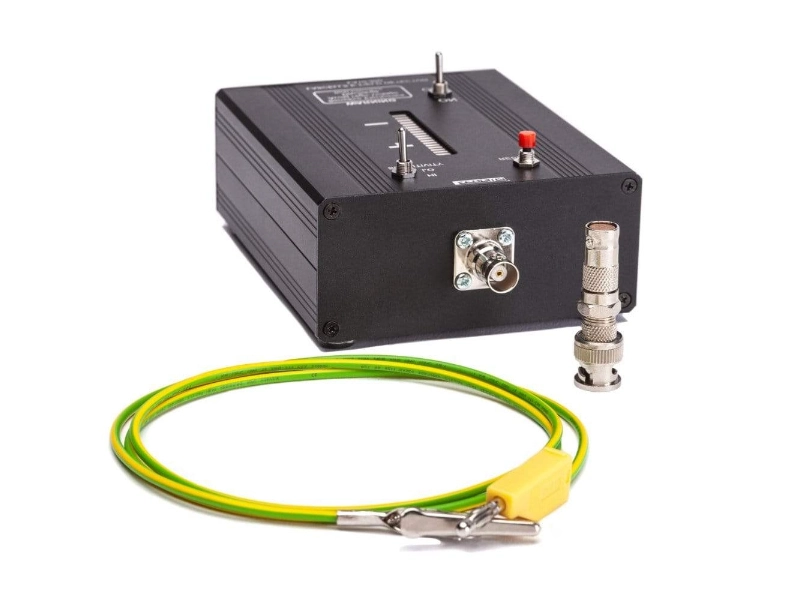

7. Electromagnetic Field Sensors
Blue lightning detection and analysis depend much on electromagnetic field sensors. These advanced devices are meant to detect the fast variations in electric and magnetic fields connected with lightning discharges, including the special signals of blue lightning events happening at high altitudes.
Usually involving several components, advanced electromagnetic field sensors utilised in blue lightning study Whereas magnetic field antennas detect changes in the horizontal and vertical components of the magnetic field, electric field mills track changes in the vertical electric field. These sensors are frequently coupled with high-speed data collecting systems able of sampling at rates of millions of times per second, so enabling the capture of the rapidly changing electromagnetic signals generated by blue lightning.
The capacity of electromagnetic field sensors to identify blue lightning episodes even in cases when visual observation is not possible—that is, during daylight hours or in clouds—is one of their main benefits. Through the analysis of the features of the observed electromagnetic signals—including their amplitude, frequency content, and temporal evolution—researcher can deduce important information about the type and strength of blue lightning discharges.

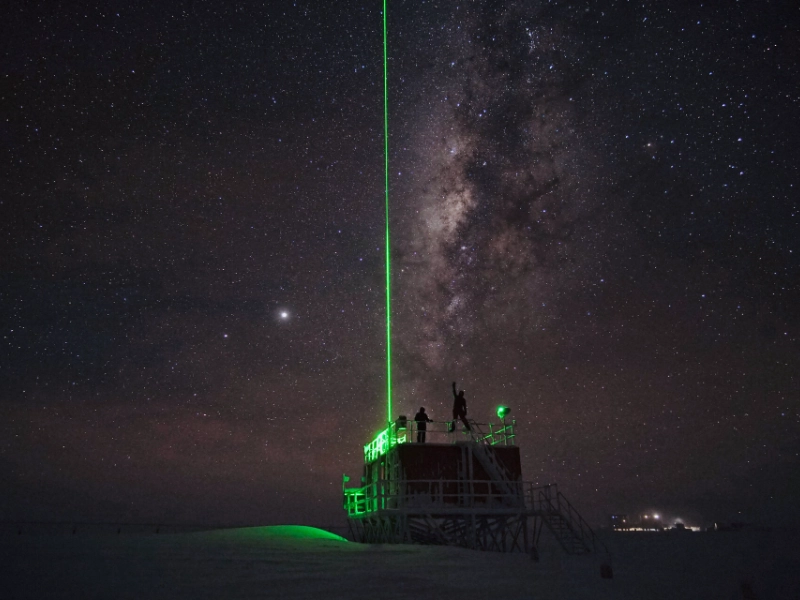

8. Lidar Systems for Atmospheric Profiling
Investigating the atmospheric variables linked with blue lightning has found a useful tool in lidar (Light Detection and Ranging) devices. These sophisticated remote sensing devices probe the atmosphere using laser pulses, therefore offering comprehensive data on its composition, temperature, and electrical characteristics at different altitudes.
Lidar systems are very helpful in the framework of blue lightning study since they allow one to measure atmospheric characteristics in the high troposphere and lower stratosphere, where these events usually arise. High-resolution vertical profiles of air density, temperature, and aerosol concentration can be produced by means of analysis of the backscattered light from the laser pulses।
Some specialised lidar systems are made to sense and quantify atmospheric ionisation, which is intimately related to blue lightning occurrence. These devices can offer understanding of the electrical structure of the atmosphere and assist in the identification of conditions favourable for the development of blue jets and massive jets. Lidar technology’s great geographical and temporal resolution lets scientists investigate the fine-scale atmospheric events driving blue lightning discharges’ start and spread.
9. Satellite-Based X-ray and Gamma-ray Detectors
By pointing out its surprising high-energy components, satellite-based X-ray and gamma-ray detectors have transformed our knowledge of blue lightning. Originally intended for astrophysical investigations, these advanced sensors have serendipitally shown that blue lightning episodes can generate brief bursts of X-rays and even gamma-rays, a phenomena known as Terrestrial Gamma-ray Flashes (TGFs).
Modern satellites with similar detectors, notably NASA’s Fermi Gamma-ray Space Telescope, track Earth constantly for these high-energy emissions. The detectors capture arriving X-rays and gamma-rays using scintillation crystals or solid-state electronics, therefore transforming them into electrical signals whose energy and arrival time can be calculated.
TGFs linked with blue lightning are identified from other sources of high-energy radiation in the near-Earth environment using advanced data processing algorithms. Through the correlation of these detections with other lightning data, scientists can obtain understanding of the extraordinary physical processes underlie blue lightning episodes, including electron acceleration to relativistic speeds and antimatter generation in the Earth’s atmosphere.
