3. Carlin Trend (USA)
Unique mineralogy and mechanism of development define Carlin-type gold deposits. Unlike many conventional gold deposits where gold is easily seen to the unaided eye, the gold in Carlin-type deposits is usually tiny, sometimes less than 10 microns in size. Usually in concert with minerals like pyrite (fool’s gold) and arsenicopyrite, this “invisible” gold is scattered over the host rock. Often found as either nanoparticles along crystal boundaries or as a solid solution in certain sulphide minerals, the gold is
Millions of years of tectonic action has moulded the complicated geological context of the Carlin Trend. Mostly hosted in Paleozoic sedimentary rocks, especially carbonate rocks such as limestone and dolomite, is the gold mineralisation. Between 300 and 400 million years ago, these rocks were deposited in ancient marine settings. Later tectonic events, particularly the development of the Basin and Range Province, produced a network of faults and fractures that would subsequently operate as conduits for gold-bearing fluids.
Carlin-type deposits are thought to have formed by hydrothermal activity—that is, hot, mineral-rich fluids moving over the crust of Earth. Most likely drawn from deep magmatic sources, these fluids dissolved gold and other metals from nearby rocks. Changes in temperature, pressure, and chemical conditions drove the gold to precipitate out of solution and concentrate in favourable host rocks as these fluids rose through faults and cracks.
A major feature of Carlin-type deposits is the great change of the host rocks. Known as decalcification or decarbonatization, this change removes carbonate minerals from the host rock to produce a porous, silica-rich rock more likely to be gold mineralised from. Additionally produced by this process are unique alteration minerals like jasperoid, a commonly used exploration indication.
The worldwide gold mining sector has been greatly changed by the identification and evolution of the Carlin Trend. These deposits were mainly disregarded before the 1960s since conventional prospecting techniques failed to find the tiny gold. The discovery of Carlin-type deposits spurred the creation of new exploration strategies including geochemical sampling approaches and sophisticated analytical tools able to find minute levels of gold.

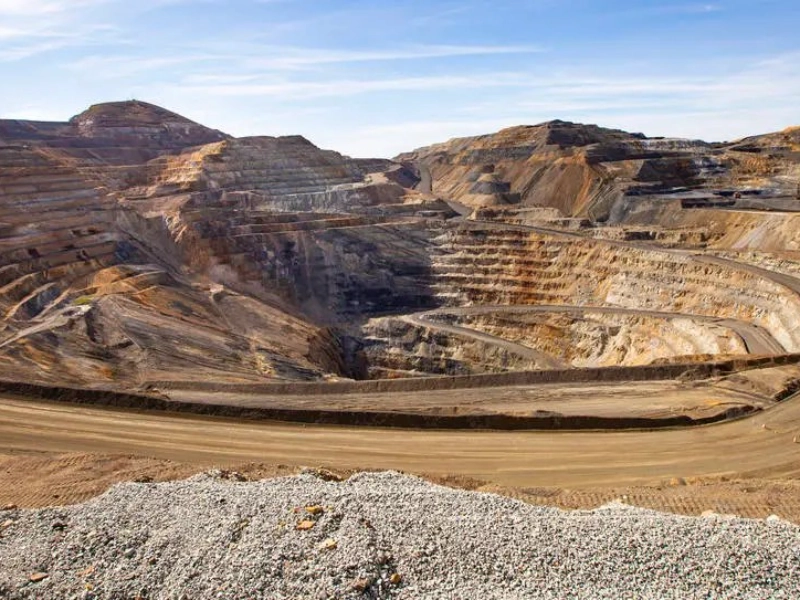

Depending on the depth and features of each specific deposit, mining activities in the Carlin Trend comprise both open-pit and underground techniques. Because of its microscopic character and link with sulphide minerals, the extraction of gold from Carlin-type ores involves special difficulties. Usually, processing entails breaking down the sulphide minerals and freeing the gold by crushing and grinding the ore to a fine powder then oxidising. Often this is accomplished by roasting or pressure oxidation, then cyanide leaching to extract the gold.
With cumulative production of 50 million ounces, the Carlin Trend has been a major factor influencing United States gold output for decades. With fresh reserves still found and brought into use, the area remains a target for exploration and development. The popularity of the Carlin Trend has also encouraged research for like minerals all around, resulting in finds in China, Macedonia, and other nations.
Along the Carlin Trend, mining activities depend critically on environmental factors. Careful management and monitoring are needed for cyanide used in gold processing as well as for potential acid mine drainage from sulfide-rich waste rock. Operating in the area, mining corporations have put in place reclamation programs, tailings management systems, and water treatment facilities among other substantial environmental protection actions.
Research of the Carlin Trend keeps developing our knowledge of ore deposit development and enhances exploring methods for like-minded deposits all around. By means of geochemical and structural analysis of these deposits, geologists help to refine exploration models and create more successful targeting strategies. The knowledge obtained from the Carlin Trend affects not just the future gold finds but also our understanding of crustal processes and the development of mineral deposits throughout geological time.
Looking ahead, the Carlin Trend continues to be a vital source of gold production data and a live laboratory for geological investigation. Our knowledge of gold mineralisation processes will surely continue to be shaped by the continuous research and development of this remarkable geological feature, which also stimulates invention in mining and mineral processing technology.
